• Climeworks is building the world’s largest direct air capture and storage facility in Iceland
  • 4,000 metric tons of CO2 will be stored as rock underground each year
  • Hagen Seifert, Head of Sustainable Product Concepts at AUDI AG: “Important measure for reaching the Group’s climate targets”
In depth: Audi and Climeworks store CO2 from the atmosphere underground

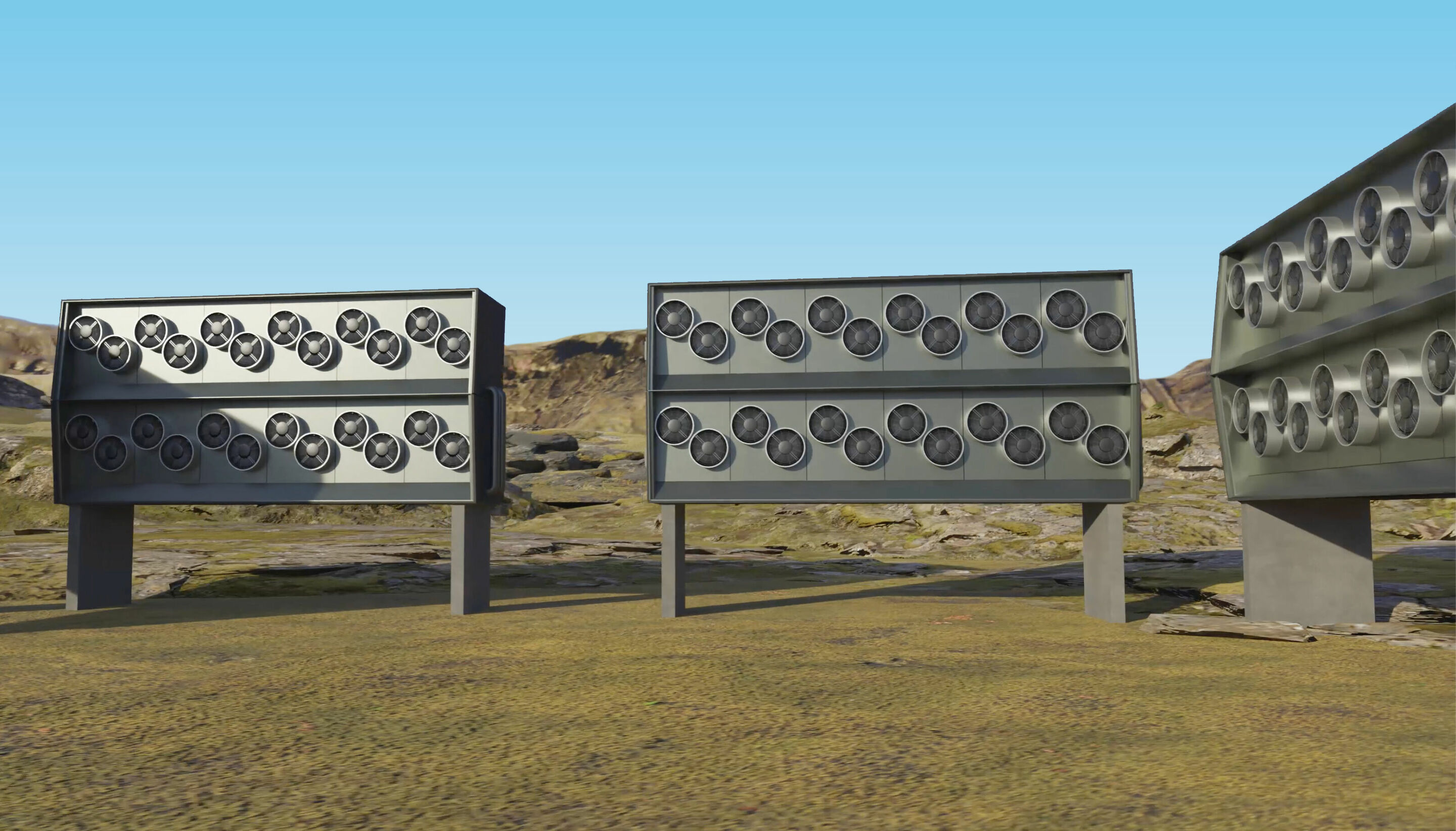

The Swiss company Climeworks is building the world’s largest direct air capture and storage facility for converting atmospheric CO2 to rock in Iceland. Audi is partnering with the Zurich-based environmental start-up and promoting a future technology with the project. The facility will filter 4,000 metric tons of carbon dioxide from the air and mineralize it underground. Climeworks is removing 1,000 metric tons thereof from the atmosphere on behalf of Audi.

The process – how the CO2 gets deep underground

With direct air capture technology, carbon dioxide is extracted from the ambient air and air free of CO2 is returned to the atmosphere. Climeworks’ new facility in Iceland transports the CO2 filtered out of the air below the Earth’s surface, where natural processes then mineralize it. The carbon dioxide is thus permanently removed from the atmosphere.

The facility first draws in air and feeds it into the CO2 collector, which contains a selective filter material. This uses a specially developed adsorbent to bind the CO2 in the air. When this filter is saturated with CO2, it is heated to 100 degrees Celsius using waste heat from a nearby geothermal plant to release the CO2 molecules. Water from the Hellisheiði power plant then flows through the facility and transports the carbon dioxide roughly 2,000 meters below the surface of the Earth. The CO2 molecules react through natural mineralization processes with the basalt rock and are converted to carbonates over a period of several years, thus permanently storing the CO2 underground. The water returns to the cycle of the geothermal power plant. The facility will operate 24 hours a day, seven days a week, and will filter 4,000 metric tons from the atmosphere each year. One quarter of that will be credited to Audi. 80,000 trees would be needed to bind this amount naturally.

The direct air capture technology from Climeworks boasts two major advantages: Lifecycle analyses show that 90 percent of the CO2 filtered out of the air is effectively and permanently stored underground. This high reduction capacity makes the facility particularly efficient. The technology can also be scaled up to the megaton-per-year range and thus harbors great potential from the future.

Iceland is one of several places on Earth offering the ideal conditions for this process. Its volcanic origin makes the country one of the world’s most potent geothermal regions. The particularly high geothermal energy means that the Earth’s heat can be converted to electricity cost-effectively and virtually CO2 neutrally. Furthermore, the rock in Iceland has the ideal composition for storing large amounts of CO2.

The mission – why Audi is involved

Hagen Seifert, Head of Sustainable Product Concepts at Audi, says, “From a scientific perspective, the adsorption of carbon dioxide from the atmosphere is an important measure in addition to reducing emissions for reaching the Group’s climate targets. We are contributing to decarbonization through our involvement in the Climeworks CO2 capturing project.” Audi is once again following its holistic approach here and is participating in the project to promote the development and meaningful implementation of innovative climate protection technologies.

Audi has been supporting the development of CO2 capturing technology from the Zurich-based environmental start-up Climeworks since 2013. Two years ago the two companies built a facility in Hinwil, Switzerland, that filters CO2 from the air and provides it to the beverage industry, where it is converted to carbonic acid. Audi is extending this successful partnership with the project in Iceland and taking it to the next level. Because the carbon is placed underground, the brand with the Four Rings is helping to close the cycle by permanently storing the bound CO2 in the ground. Audi is also supporting the Swiss start-up with its technological know-how, such as for the development of new heat exchanger concepts.

By 2025, the Volkswagen Group wants to reduce the ecological footprint of cars and light utility vehicles along the entire value chain by 30 percent relative to 2015. Audi has therefore set ambitious targets in all areas of the company with the goal of achieving net CO2-neutrality company-wide by 2050.
